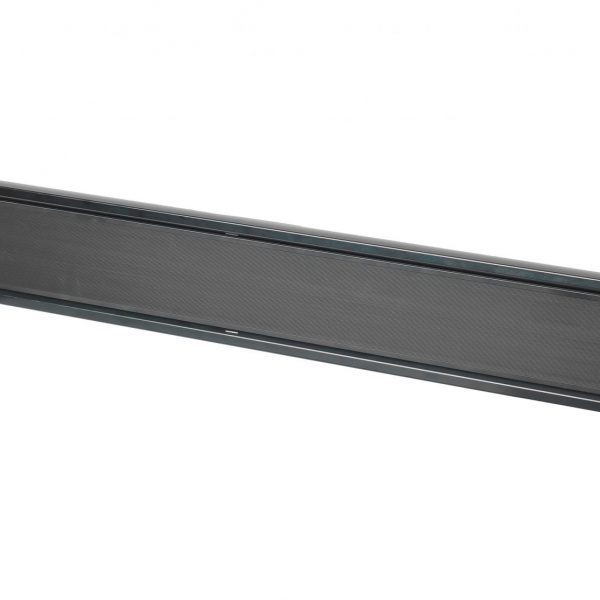

ECOSUN S+ High Output Space Heater


Product total
Options total
Grand total
Get a quote

Share This Product

These products can be purchased through Electrical Wholesalers, Builders Merchants, Plumbing & Heating outlets, Kitchen, Bathroom, Tile and Flooring Showrooms.

Our Infrared Heaters are manufactured to order so sometimes stock levels are low.
Please call 01592 760928 to discuss stock levels to avoid delay in getting your order.


Ecosun infrared panels are an ideal way of providing thermal comfort in commercial and industrial buildings. They are specifically designed for high level mounting.

They can be horizontally ceiling mounted with an auxilliary frame or suspended on drop rods or chains. They are only 60mm deep and typical applications include large volume spaces where conventional warm air convection heating systems would be uneconomic.

These include ; Supermarkets, Gymnasiums, Showrooms, Factories and Warehouses.

Flexel 10 Year Warranty

Product Variations

Product Variations

Product CodeDimensionsPower (W)Price (Excluding VAT)
ECOSUN S+ 091550 × 160 × 60 mm900£204.52
ECOSUN S+ 121550 × 160 × 60 mm1200£214.73
ECOSUN S+ 181550 × 160 × 60 mm1800£295.14
ECOSUN S+ 241550 × 260 × 50 mm2400£310.76
ECOSUN S+ 301550 × 350 × 60 mm3000£384.25
ECOSUN S+ 361550 × 350 × 60 mm3600£403.47



Product CodeDescriptionPrice (Excl VAT)
ECOSUN TBTiltable brackets for Ecosun S+£7.79
ECOSUN G0912Protective grill for ECOSUN S+ 09-12£27.44
ECOSUN G1824Protective grill for ECOSUN S+ 18-24£34.11
ECOSUN G3036Protective grill for ECOSUN S+ 30-36£40.79

Video Installation

Video Installation



  • Localised Heating- only warm the area required e.g. work stations
  • Suspended or ceiling mounted. Ecosun radiant heat panels provide totally usable floor and wall space and reduce the risk of damage or
  • Higher ventilation and air extract rates do not significantly effect the radiant performance of Ecosun panels which primarily warm the fabric of the heated area.
  • Gentle infrared heat results in improved comfort conditions at lower inside ambient temperature – providing comfort conditions at lower running costs.
  • Infrared heating does not cause air convection currents, therefore minimising dust movement and provides a clean, draft free environment.
  • Ecosun panels are constructed using a rod heating element encapsulated within a special aluminium extrusion profile. The surface area of the aluminium profile is treated with a silicating process which substancially increases its surface area and its ability to emit heat. The result is a high efficiency, low maintenance heater suitable for commercial and industrial environments.



  • Attractive powder coated casing (RAL9002 off white) & grey radiating faceplate.
  • Fully insulated galvanised casing with class O foil backed 25mm thick insulation
  • Ceiling mounting frame included in installation kit
  • Heating panel surface temperature – approx 350 C
  • Protection: Class1 , IP x 4, Cable gland to IP44
  • Thermo crystal high emissivity heating panel


Due to the high power outputs Ecosun electric heating panels must be installed the following minimum distances from:

  • Radiant surfaces ( up to 260 C ) 1000mm
  • Back side of panel 100mm
  • Wall 1500mm Floor 3500mm
These electric heating panels are designed to work with our range of  air sensing thermostats
