ECOFLOOR In-screed Underfloor Heating Cable
£42.65 – £315.36
Heating is a single core cable rated at 15W/lin metre. Used to provide underfloor heating in new build projects in screeded floors. Typically laid directly onto foil backed insulation then covered with a minimum of 50mm sand & cement screed. On new build projects with screed floors this cable can provide an economical heating solution.
Features
- 15W/lin metre provides heating to new builds
- Tough and durable thick heating cable
- Suitable for all floor finishes in wet and dry areas
- Full metallic earth screen for total safety
These products can be purchased through Electrical Wholesalers, Builders Merchants, Plumbing & Heating outlets, Kitchen, Bathroom, Tile and Flooring Showrooms.
Our Infrared Heaters are manufactured to order so sometimes stock levels are low.
Please call 01592 760928 to discuss stock levels to avoid delay in getting your order.
Product Variations
Product Variations
| Product Code | Coverage at 100W/m² | Coverage at 160W/m² | Coverage at 200W/m² | Output (W) | Length (m) | Resistance (ohms) | Price (Excl VAT) | |
|---|---|---|---|---|---|---|---|---|
| 15200 | 2.0 | 1.3 | 1.0 | 200 | 13.7 | 264.5 | £42.65 | £42.65Select options |
| 15340 | 3.3 | 2.0 | 1.6 | 340 | 22.0 | 155.5 | £51.00 | £51.00Select options |
| 15420 | 4.2 | 2.6 | 2.1 | 420 | 28.0 | 126.0 | £58.20 | £58.20Select options |
| 15550 | 5.5 | 3.5 | 2.8 | 550 | 37.0 | 96.0 | £68.10 | £68.10Select options |
| 15660 | 6.7 | 4.2 | 3.4 | 660 | 45.0 | 80.0 | £73.32 | £73.72Select options |
| 15800 | 7.8 | 4.9 | 3.9 | 800 | 52.0 | 66.0 | £81.95 | £81.95Select options |
| 15880 | 9.0 | 5.5 | 4.4 | 880 | 59.0 | 60.0 | £89.38 | £89.38Select options |
| 15960 | 9.6 | 6.0 | 4.8 | 960 | 64.0 | 55.0 | £95.16 | £95.16Select options |
| 151070 | 10.8 | 6.7 | 5.4 | 1070 | 72.0 | 49.5 | £104.38 | £104.38Select options |
| 151210 | 12.0 | 7.6 | 6.1 | 1210 | 81.0 | 43.5 | £108.43 | £108.34Select options |
| 151300 | 12.6 | 7.9 | 6.3 | 1300 | 84.0 | 40.5 | £113.90 | £113.90Select options |
| 151580 | 15.7 | 9.8 | 7.9 | 1580 | 105.0 | 33.5 | £140.76 | £140.76Select options |
| 151900 | 19.3 | 12.0 | 9.7 | 1900 | 129.0 | 27.8 | £166.60 | £166.10Select options |
| 152200 | 22.5 | 14.0 | 11.3 | 2200 | 150.0 | 24.0 | £185.22 | £185.22Select options |
| 152800 | 28.3 | 17.7 | 14.2 | 2800 | 189.0 | 18.9 | £245.34 | £245.34Select options |
| 153400 | 34.2 | 21.4 | 17.1 | 3400 | 228.0 | 15.5 | £315.36 | £315.36Select options |
Accessories
Accessories
| Product Code | Description | Price (Excl VAT) | |
|---|---|---|---|
| ADT15 | Heavy Duty Fixing Tape (15mm x 50m) | £4.64 | £4.64Select options |
| ECOPF | 500mm Plastic Fixing Strip | £0.62 | £0.62Select options |
| ECHOHD | 10m Steel Fixing Strip | £13.70 | £13.70Select options |

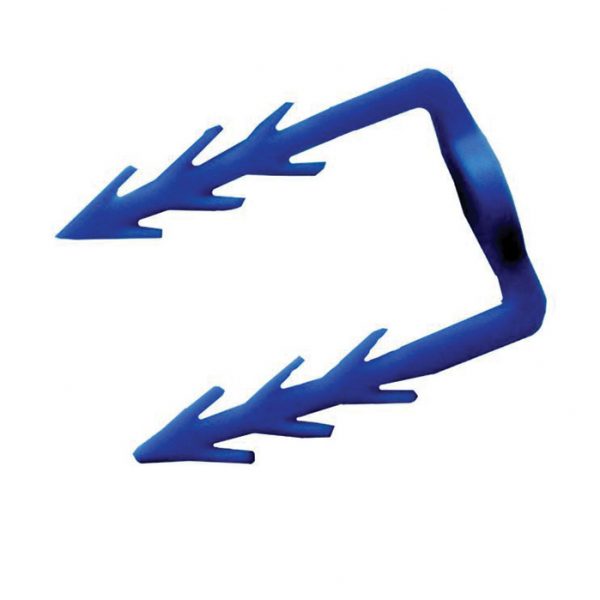

| ECOCLIP | Plastic Fixing Clips (Pack of 50) | £4.94 | £4.94Select options |
| ET16W | 6White Touch Screen Thermostat (16A) | £87.55 | £87.55Select options |
| ET16S | Silver Touch Screen Thermostat (16A) | £90.64 | £90.64Select options |
| ET16B | Black Touch Screen Thermostat (16A) | £90.64 | £90.64Select options |
| TH232 | Digital programmable Thermostat (15A) | £70.04 | £70.04Select options |
| TH131 | Manual Room Thermostat (15A) | £51.50 | £51.50Select options |
Specification
Specification
- Diameter: 4.6 – 5.1mm
- 230V supply
- Single core conductor cable
- Power loading: 15W/lin metre
- 2 x 5.0m cold connection leads
- Approved to IEC 60800
